12. Octopus Crash Sensor Brick(EF04013)

12.1. Introduction

Crash Sensor Brick is a sensor module based on crash switch, simple circuit design, high sensitivity.

../../_images/YR7t4Pj.jpg

12.3. Characteristics

The 3-pins ports is easy to plug and play.

It can work with micro:bit in 3V.

12.4. Specifications

Item | Parameter :-: | :-:SKU|EF04013 Working Voltage|3.3-5V Connector Type |Digital Pins Definition|1-Signal 2-VCC 3-GND Response|Quick to response with high sensitivity Power Dissipation|ULP Working Temperature|-20-70℃ Circuit|Simple Stability|Stable and durable

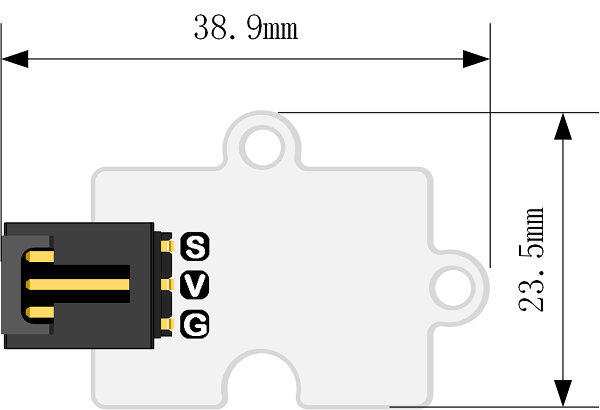

12.5. Outlook and Dimensions

../../_images/vtK7bwP.png

12.6. Quick to Start

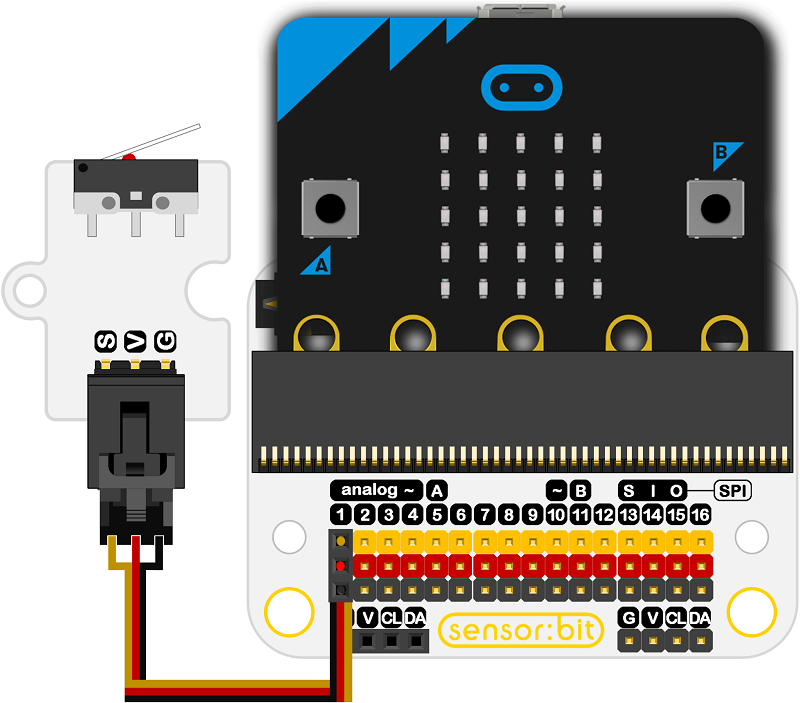

Connection diagram

Connect to P1 port as the picture shows.

Take sensor:bit for example

../../_images/UUQlBRi.png

Quick to Start

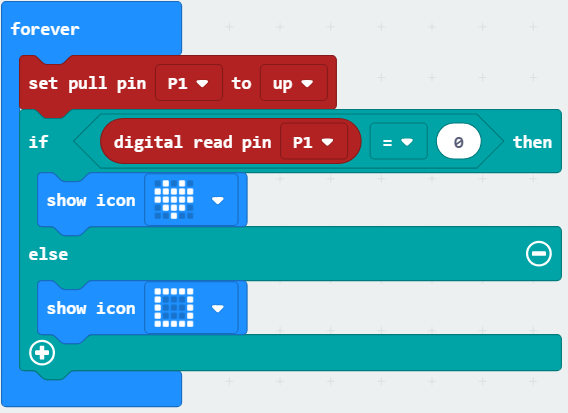

Set the P1 port to a higher level to initialize the module. After being pressed, the returned value is 0, the digital read P1 pin is 0, then the icon is shown on the screen. Or it shows a box.

../../_images/Lp93T7L.png

Reference

Links: https://makecode.microbit.org/_WMwRtRXFe2tw

You can also download it directly below:

Result

When the sensor is pressed, a rectangle is showing on the micro:bit; while released, an icon is showing on the micro:bit.
